So, wird Zeit um mal wieder was zu spielen
Das Setup
Hardware
- ROCKPro64 v2.1 mit 2GB
- PCIe SATA-Karte
- 2 * HDD Festplatten (2TB)
Software
rock64@rockpro64:~$ uname -a Linux rockpro64 4.4.132-1075-rockchip-ayufan-ga83beded8524 #1 SMP Thu Jul 26 08:22:22 UTC 2018 aarch64 aarch64 aarch64 GNU/Linux
Das ist der letzte Release vom Kamil ohne Kernelupdates.
Einrichten der HDDs
Die zwei fabrikneuen HDDs brauchen jeweils eine Partition. Dazu nutzen wir fdisk.
rock64@rockpro64:~$ sudo fdisk /dev/sda Welcome to fdisk (util-linux 2.31.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Device does not contain a recognized partition table. Created a new DOS disklabel with disk identifier 0xee944413. Command (m for help): p Disk /dev/sda: 1.8 TiB, 2000398934016 bytes, 3907029168 sectors Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes Disklabel type: dos Disk identifier: 0xee944413 Command (m for help): n Partition type p primary (0 primary, 0 extended, 4 free) e extended (container for logical partitions) Select (default p): p Partition number (1-4, default 1): 1 First sector (2048-3907029167, default 2048): Last sector, +sectors or +size{K,M,G,T,P} (2048-3907029167, default 3907029167): Created a new partition 1 of type 'Linux' and of size 1.8 TiB. Command (m for help): w The partition table has been altered. Calling ioctl() to re-read partition table. Syncing disks. rock64@rockpro64:~$ sudo fdisk /dev/sdb Welcome to fdisk (util-linux 2.31.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Device does not contain a recognized partition table. Created a new DOS disklabel with disk identifier 0x7ee08dca. Command (m for help): p Disk /dev/sdb: 1.8 TiB, 2000398934016 bytes, 3907029168 sectors Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes Disklabel type: dos Disk identifier: 0x7ee08dca Command (m for help): n Partition type p primary (0 primary, 0 extended, 4 free) e extended (container for logical partitions) Select (default p): p Partition number (1-4, default 1): 1 First sector (2048-3907029167, default 2048): Last sector, +sectors or +size{K,M,G,T,P} (2048-3907029167, default 3907029167): Created a new partition 1 of type 'Linux' and of size 1.8 TiB. Command (m for help): w The partition table has been altered. Calling ioctl() to re-read partition table. Syncing disks.
Danach sind die HDDs soweit erst mal fertig.
btrfs
Ich möchte diesmal gerne mit btrfs rumspielen. btrfs ist ein Filesystem, also so wie ext3 oder ext4 (ich weiß, das ist unkorrekt. Aber für Einsteiger sollte es passen)
rock64@rockpro64:~$ sudo apt-get install btrfs-tools Reading package lists... Done Building dependency tree Reading state information... Done The following additional packages will be installed: btrfs-progs Suggested packages: duperemove The following NEW packages will be installed: btrfs-progs btrfs-tools 0 upgraded, 2 newly installed, 0 to remove and 0 not upgraded. Need to get 554 kB of archives. After this operation, 3924 kB of additional disk space will be used. Do you want to continue? [Y/n] Get:1 http://ports.ubuntu.com/ubuntu-ports bionic/main arm64 btrfs-progs arm64 4.15.1-1build1 [551 kB] Get:2 http://ports.ubuntu.com/ubuntu-ports bionic/main arm64 btrfs-tools arm64 4.15.1-1build1 [2604 B] Fetched 554 kB in 0s (1501 kB/s) perl: warning: Setting locale failed. perl: warning: Please check that your locale settings: LANGUAGE = (unset), LC_ALL = (unset), LANG = "de_DE.UTF-8" are supported and installed on your system. perl: warning: Falling back to the standard locale ("C"). locale: Cannot set LC_CTYPE to default locale: No such file or directory locale: Cannot set LC_MESSAGES to default locale: No such file or directory locale: Cannot set LC_ALL to default locale: No such file or directory Selecting previously unselected package btrfs-progs. (Reading database ... 46721 files and directories currently installed.) Preparing to unpack .../btrfs-progs_4.15.1-1build1_arm64.deb ... Unpacking btrfs-progs (4.15.1-1build1) ... Selecting previously unselected package btrfs-tools. Preparing to unpack .../btrfs-tools_4.15.1-1build1_arm64.deb ... Unpacking btrfs-tools (4.15.1-1build1) ... Processing triggers for initramfs-tools (0.130ubuntu3.1) ... update-initramfs: Generating /boot/initrd.img-4.4.132-1075-rockchip-ayufan-ga83beded8524 Processing triggers for libc-bin (2.27-3ubuntu1) ... Setting up btrfs-progs (4.15.1-1build1) ... Setting up btrfs-tools (4.15.1-1build1) ... Processing triggers for initramfs-tools (0.130ubuntu3.1) ... update-initramfs: Generating /boot/initrd.img-4.4.132-1075-rockchip-ayufan-ga83beded8524 Processing triggers for libc-bin (2.27-3ubuntu1) ...
HDDs formatieren
rock64@rockpro64:~$ sudo mkfs.btrfs -m raid1 -d raid1 -L "BTRFS_RAID" /dev/sda1 /dev/sdb1 btrfs-progs v4.15.1 See http://btrfs.wiki.kernel.org for more information. Label: BTRFS_RAID UUID: eb901604-2d07-42b3-bbfe-faff22d7ece4 Node size: 16384 Sector size: 4096 Filesystem size: 3.64TiB Block group profiles: Data: RAID1 1.00GiB Metadata: RAID1 1.00GiB System: RAID1 8.00MiB SSD detected: no Incompat features: extref, skinny-metadata Number of devices: 2 Devices: ID SIZE PATH 1 1.82TiB /dev/sda1 2 1.82TiB /dev/sdb1
Somit hätten wir jetzt ein RAID1 erzeugt aus den beiden HDDs.
rock64@rockpro64:/$ sudo blkid /dev/sda1 /dev/sdb1 [sudo] password for rock64: /dev/sda1: LABEL="BTRFS_RAID" UUID="eb901604-2d07-42b3-bbfe-faff22d7ece4" UUID_SUB="d0f458d8-c211-4c44-bc26-54e4b8cba161" TYPE="btrfs" PARTUUID="ee944413-01" /dev/sdb1: LABEL="BTRFS_RAID" UUID="eb901604-2d07-42b3-bbfe-faff22d7ece4" UUID_SUB="a60198f0-7de8-4bd4-9d55-01cd91692923" TYPE="btrfs" PARTUUID="7ee08dca-01"
RAID1 mounten
sudo mount /dev/sda1 /mnt
Auf dem Einhängepunkt /mnt würde uns jetzt das RAID1 zur Verfügung stehen.
rock64@rockpro64:/$ df -h Filesystem Size Used Avail Use% Mounted on udev 992M 0 992M 0% /dev tmpfs 200M 476K 199M 1% /run /dev/mmcblk0p7 30G 1.3G 27G 5% / tmpfs 996M 0 996M 0% /dev/shm tmpfs 5.0M 4.0K 5.0M 1% /run/lock tmpfs 996M 0 996M 0% /sys/fs/cgroup /dev/mmcblk0p6 112M 4.0K 112M 1% /boot/efi tmpfs 200M 0 200M 0% /run/user/1000 /dev/sda1 1.9T 17M 1.9T 1% /mnt
!! Man muss nur eine HDD mounten, um den Rest kümmert sich btrfs !!
Kurzer Test
sudo mount /dev/sdb1 /media
Damit würde man die zweite HDD nach /media mounten. Wenn man nun auf der HDD /mnt eine Datei erzeugt, findet man diese Datei auch unter /media wieder. Das ist die identische Kopie. Dieser Schritt ist nicht notwendig, sollte nur mal ein kleiner Test sein. Um das Schaufeln der Daten kümmert sich btrfs selbst
Speedtest
dd
rock64@rockpro64:/mnt$ sudo dd if=/dev/zero of=sd.img bs=1M count=4096 conv=fdatasync 4096+0 records in 4096+0 records out 4294967296 bytes (4.3 GB, 4.0 GiB) copied, 42.9631 s, 100 MB/s
iozone
rock64@rockpro64:/mnt$ sudo iozone -e -I -a -s 100M -r 4k -r 16k -r 512k -r 1024k -r 16384k -i 0 -i 1 -i 2 Iozone: Performance Test of File I/O Version $Revision: 3.429 $ Compiled for 64 bit mode. Build: linux Contributors:William Norcott, Don Capps, Isom Crawford, Kirby Collins Al Slater, Scott Rhine, Mike Wisner, Ken Goss Steve Landherr, Brad Smith, Mark Kelly, Dr. Alain CYR, Randy Dunlap, Mark Montague, Dan Million, Gavin Brebner, Jean-Marc Zucconi, Jeff Blomberg, Benny Halevy, Dave Boone, Erik Habbinga, Kris Strecker, Walter Wong, Joshua Root, Fabrice Bacchella, Zhenghua Xue, Qin Li, Darren Sawyer, Vangel Bojaxhi, Ben England, Vikentsi Lapa. Run began: Mon Aug 27 16:08:17 2018 Include fsync in write timing O_DIRECT feature enabled Auto Mode File size set to 102400 kB Record Size 4 kB Record Size 16 kB Record Size 512 kB Record Size 1024 kB Record Size 16384 kB Command line used: iozone -e -I -a -s 100M -r 4k -r 16k -r 512k -r 1024k -r 16384k -i 0 -i 1 -i 2 Output is in kBytes/sec Time Resolution = 0.000001 seconds. Processor cache size set to 1024 kBytes. Processor cache line size set to 32 bytes. File stride size set to 17 * record size. random random bkwd record stride kB reclen write rewrite read reread read write read rewrite read fwrite frewrite fread freread 102400 4 10449 7641 10617 11416 1666 6508 102400 16 18176 22496 24975 31205 5943 14868 102400 512 44167 42565 41055 43099 31827 46765 102400 1024 50660 48283 49612 51093 42008 55360 102400 16384 69188 69437 112674 118407 109011 74552 iozone test complete.
hdparm
Mit hdparm kann man die HDDs schlafen legen. Gerade die mechanischen Dinger, können einem ganz schön auf die Nerven gehen. Da ich diese Installation später mal als NAS nutzen möchte, müssen die Platten nicht ewig laufen. Macht die mechanischen Dinger auch nur kaputt
Installation
rock64@rockpro64:/mnt$ sudo apt-get install hdparm Reading package lists... Done Building dependency tree Reading state information... Done Suggested packages: apmd Recommended packages: powermgmt-base The following NEW packages will be installed: hdparm 0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded. Need to get 89.6 kB of archives. After this operation, 231 kB of additional disk space will be used. Get:1 http://ports.ubuntu.com/ubuntu-ports bionic/main arm64 hdparm arm64 9.54+ds-1 [89.6 kB] Fetched 89.6 kB in 0s (460 kB/s) perl: warning: Setting locale failed. perl: warning: Please check that your locale settings: LANGUAGE = (unset), LC_ALL = (unset), LANG = "de_DE.UTF-8" are supported and installed on your system. perl: warning: Falling back to the standard locale ("C"). locale: Cannot set LC_CTYPE to default locale: No such file or directory locale: Cannot set LC_MESSAGES to default locale: No such file or directory locale: Cannot set LC_ALL to default locale: No such file or directory Selecting previously unselected package hdparm. (Reading database ... 46794 files and directories currently installed.) Preparing to unpack .../hdparm_9.54+ds-1_arm64.deb ... Unpacking hdparm (9.54+ds-1) ... Setting up hdparm (9.54+ds-1) ...
Konfiguration
ls /dev/disk/by-id
Die ID's der HDDs auslesen. In meinem Fall sieht das so aus.
rock64@rockpro64:/dev/disk/by-id$ ls ata-ST2000LM015-2E8174_ZDZ2MY9W mmc-SC32G_0x601d3b65 mmc-SC32G_0x601d3b65-part4 wwn-0x5000c500b111120c ata-ST2000LM015-2E8174_ZDZ2MY9W-part1 mmc-SC32G_0x601d3b65-part1 mmc-SC32G_0x601d3b65-part5 wwn-0x5000c500b111120c-part1 ata-ST2000LM015-2E8174_ZDZ2MZ1W mmc-SC32G_0x601d3b65-part2 mmc-SC32G_0x601d3b65-part6 wwn-0x5000c500b1112c07 ata-ST2000LM015-2E8174_ZDZ2MZ1W-part1 mmc-SC32G_0x601d3b65-part3 mmc-SC32G_0x601d3b65-part7 wwn-0x5000c500b1112c07-part1
Das sind meine beiden Festplatten
- ata-ST2000LM015-2E8174_ZDZ2MY9W
- ata-ST2000LM015-2E8174_ZDZ2MZ1W
Config bearbeiten
sudo nano /etc/hdparm.conf
Das dann ans Ende der Datei. Sieht dann so aus
#HDDs schlafen legen nach 20 Minuten (240*5=1200Sek.=20Min.) /dev/disk/by-id/ata-ST2000LM015-2E8174_ZDZ2MY9W { # mult_sect_io = 16 # write_cache = off # dma = on spindown_time = 10 } /dev/disk/by-id/ata-ST2000LM015-2E8174_ZDZ2MZ1W { # mult_sect_io = 16 # write_cache = off # dma = on spindown_time = 10 }
Die 10 ist mein Testwert, man hat ja nicht ewig Zeit
Danach mal eben neustarten und etwas warten, dann legen sich die Platten schlafen. Das machen sie natürlich nur, wenn es keine Aktivität gibt! Bei mir hat das wunderbar geklappt, nach einer knappen Minute waren sie leise.
Die 240 also 20 Minuten, benutze ich schon ewig auf meinem NAS, ohne Probleme. Also, nach dem Testen auf 240 umstellen! Neustarten nicht vergessen.Fazit
Soweit hat alles wie erwartet funktioniert, so könnte man nun ein nettes kleines NAS aufbauen, was nicht besonders viel Strom verbraucht. Man hätte aber auch noch genug Rechenleistung um damit mehr zu machen als zwei Platten als Datengrab zu gebrauchen, mal sehen wie es weiter geht. Ich denke ein wichtiges Thema ist Verschlüsselung. Bin kein Freund davon, Daten unverschlüsselt auf einer HDD rumliegen zu haben. Ich schau mal was es als nächstes gibt, für heute soll es das mal gewesen sein.
Wie immer, wer Fehler findet oder Tipps geben kann, dafür gibt es dieses Forum. Traut Euch!
-
Ergänzung

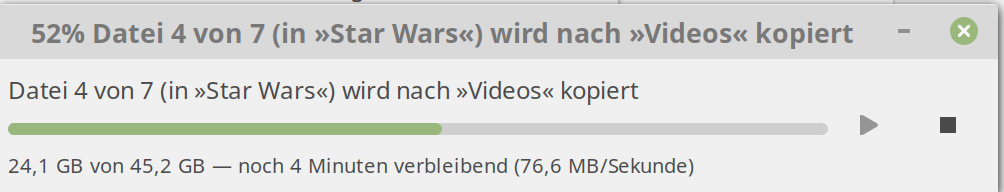

Mal ein paar Filme vom meinem aktuellen NAS auf die Platte an der PCIe SATA-Karte geschaufelt.
Ok, Geschwindigkeit ist für ein Datengrab noch akzeptabel.
